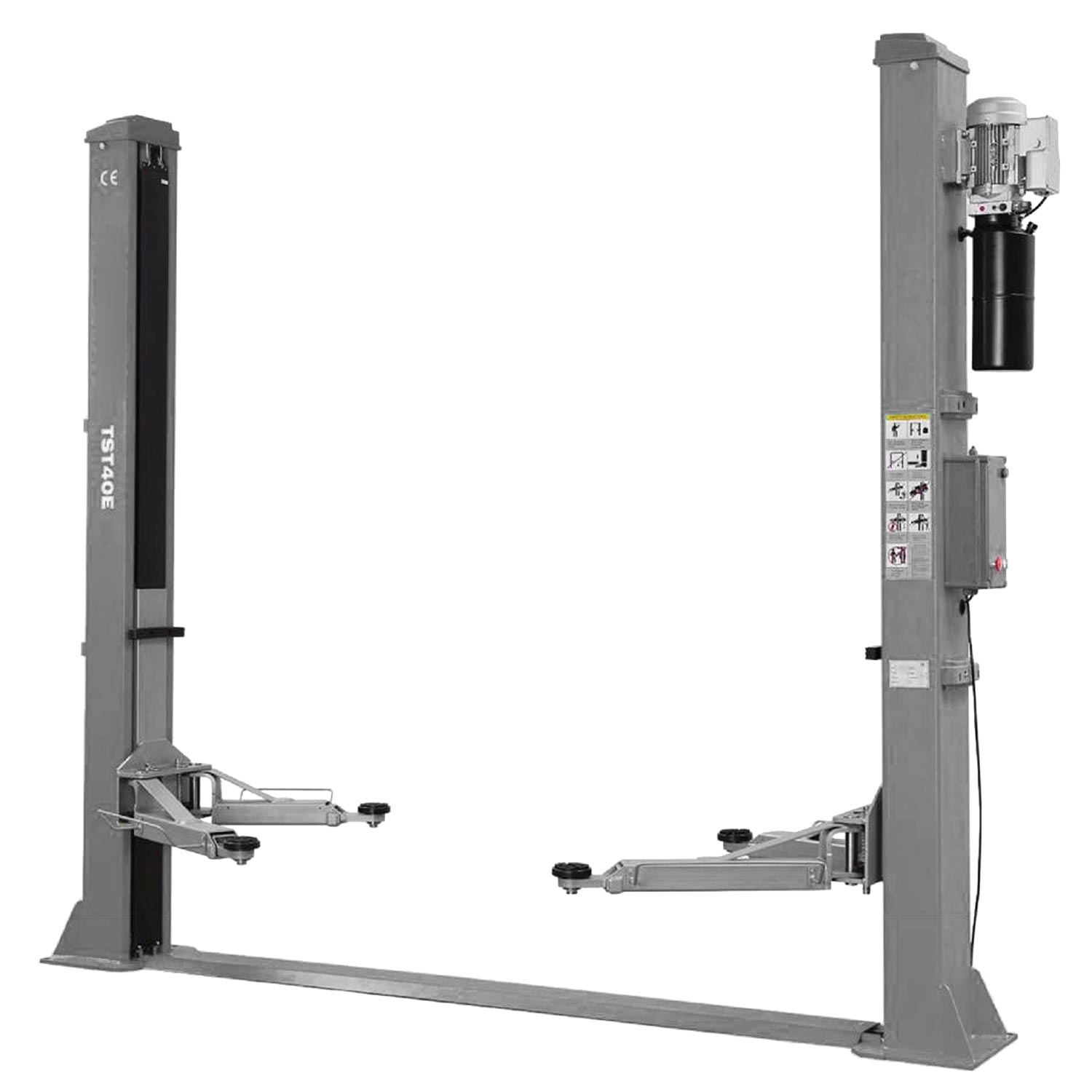

230 V 4 Ton Two Post Lift with lower synchronization
Item number: TST40E 230 V
Overview
Electro-hydraulic lift for vehicles up to 4 tonnes. Including CE-certified safety system. With low synchronisation. WITH TRIPLE EXTENDABLE CARRYING ARMS *** Features - Asymmetrical carrying arm...
Price incl. VAT: 3092 Euro
Stock status: In stock
Delivery:
On request, freight costs will be charged separately
Manufactured by:
Load capacity
4000 kg
Lifting/lowering time
25 / 55 s
Lifting height
1930 mm
Underswing height
90 mm
Total width
3365 mm
Column spacing
2780 mm
Column height
2824 mm
Engine power
2.2 kW
Net weight
570 kg
Electrical connection
1 PH x 230 V / 50 Hz
Electro-hydraulic lift for vehicles up to 4 tonnes. Including CE-certified safety system. With low synchronisation.
WITH TRIPLE EXTENDABLE SUPPORT ARMS ***
Properties:

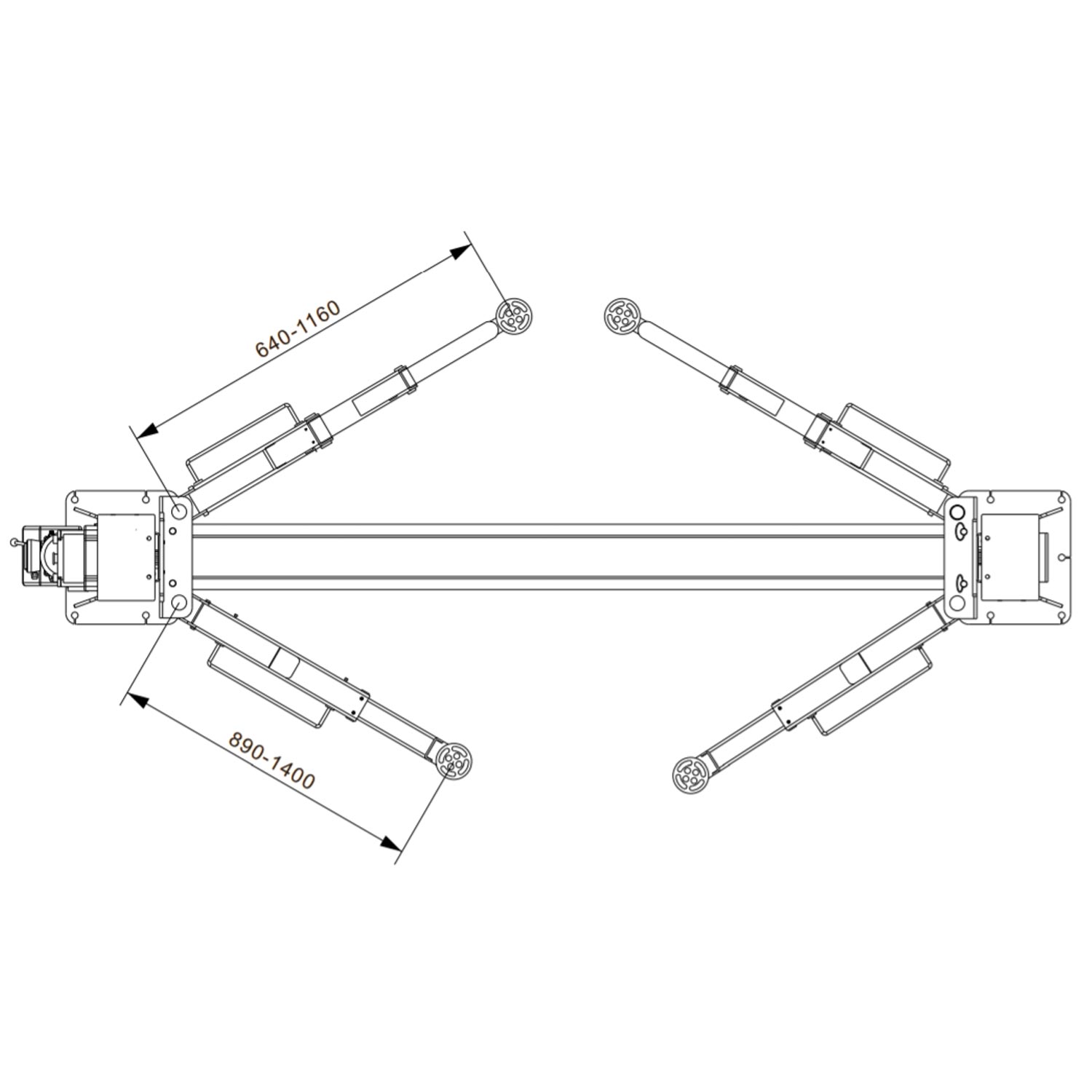

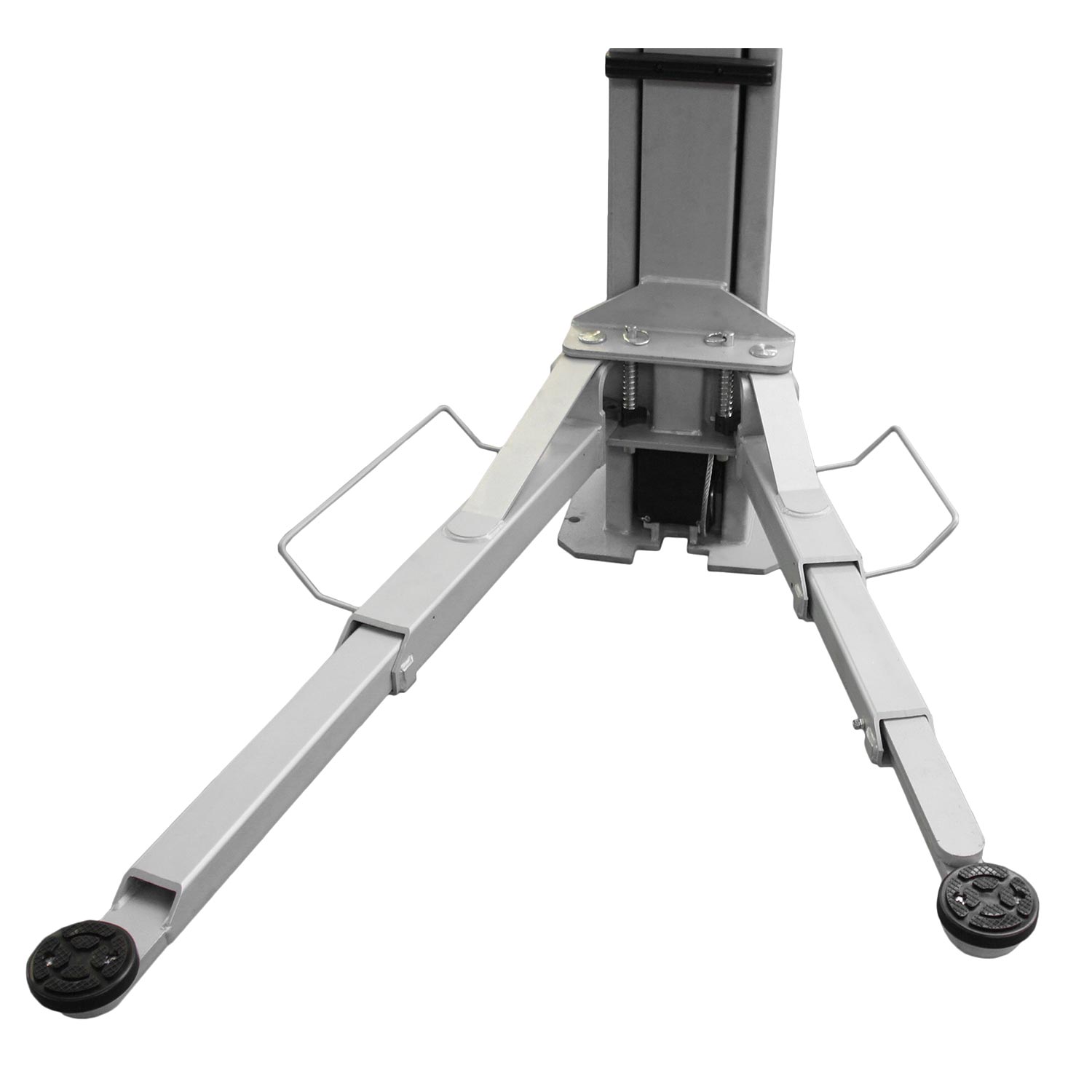

- Asymmetrical support arms - for optimum door clearance
- Lower synchronisation: 2 hydraulic cylinders + 2 cable pulls for synchronisation
- Safe and reliable electromagnetic unlocking of the lift
- Lowering without using the hydraulic unit
- Manual control of the lowering valve in emergency situations
- Reinforced lifting carriages, deformation-resistant
- Flattened 2-part drive-over rail

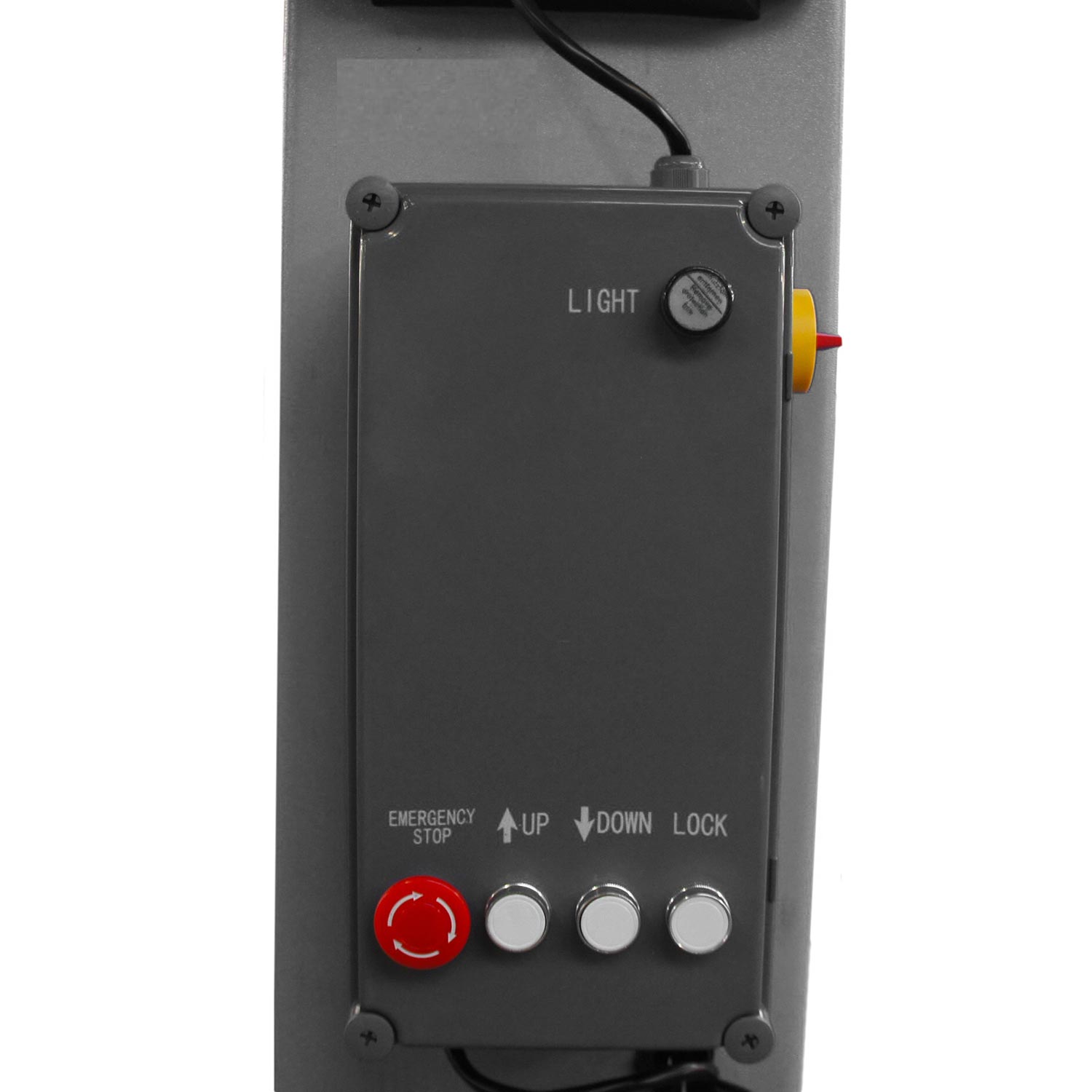

- 24 V control unit
- Rubber protectors to protect the vehicle doors
- Sliding and guide blocks made of temperature-resistant, high-strength nylon
- Double safety: vehicle is held at the set height by means of hydraulic pressure and locking pawl
- Practical support pads with rubber coating
- Support plate made of sheet steel, 6 mm
- Foundation depth for installation of the lifting platform min. 150 mm
- Robust powder coating
